Fig. 6

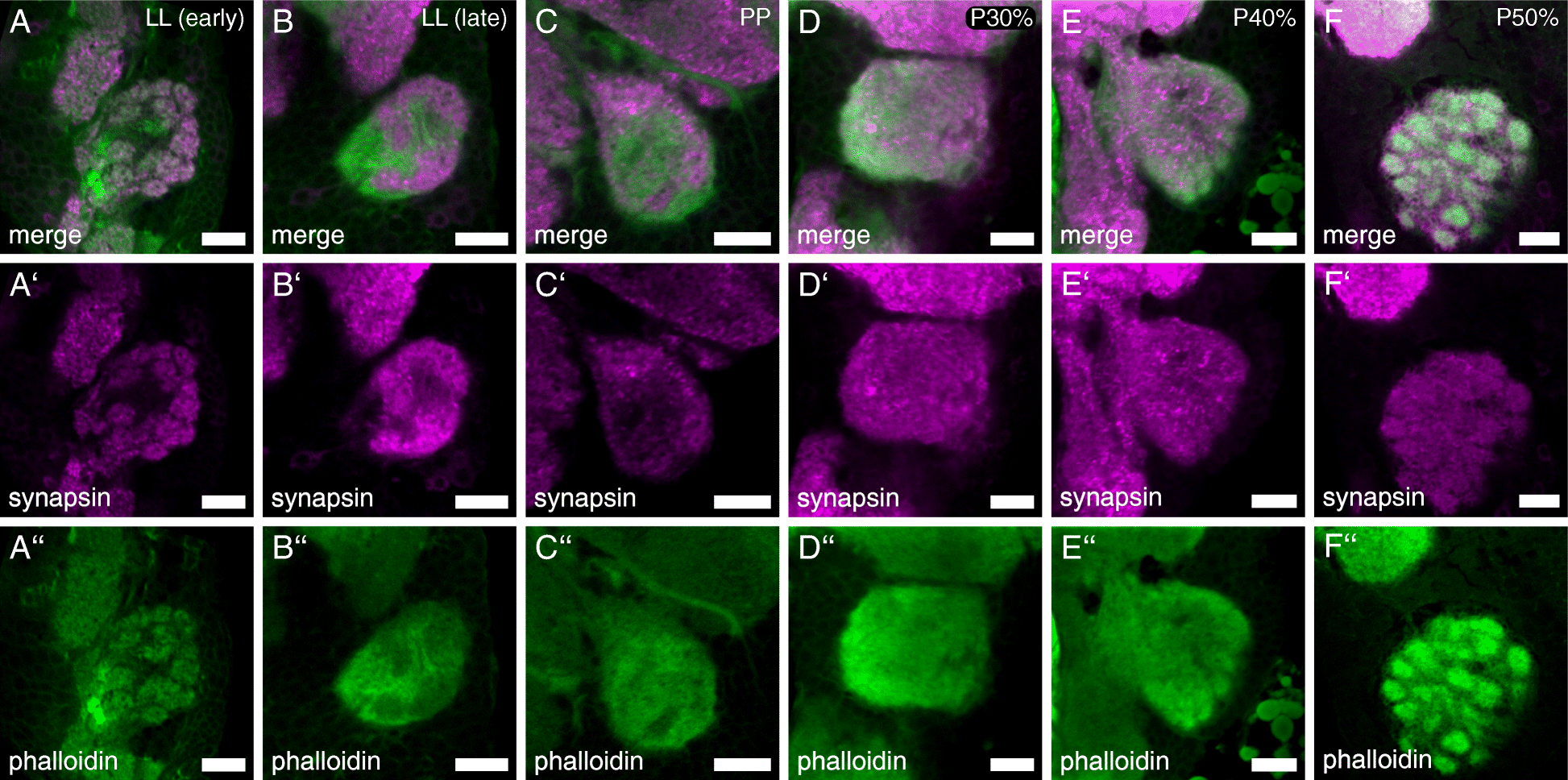

Development of the adult antennal lobe glomeruli. Representative optical slices of the antennal lobes of the red flour beetle T. castaneum at different developmental stages (LL - last larval instar, PP - prepupa, P - pupal stages), visualized by synapsin (magenta) and phalloidin (green) staining. Scale bars 10 μm
